Contractor’s Bottom Line
Roof sheathing provides the structural nailing base for roofing materials and distributes loads across the roof framing. IRC R803.2.1 requires solid sheathing for asphalt shingles, with 15/32-inch OSB or plywood as the minimum standard for 16-inch rafter spacing. Inspect the edge joints during installation to confirm proper gap spacing for thermal expansion.
Key Takeaways
- IRC R803.2.1 requires a minimum thickness of 15/32-inch for roof sheathing on spans up to 24 inches on center.
- Oriented Strand Board (OSB) is highly efficient, but CDX plywood provides better fastener retention and moisture recovery in humid DFW climates.
- The National Roofing Contractors Association (NRCA) recommends a 1/8-inch gap between panels to allow for thermal expansion in 100-degree Dallas summers.
Roof sheathing, often called roof decking, is the critical layer of wood that connects your home’s rafters to your asphalt shingles. In the Dallas-Fort Worth area, this component must withstand intense thermal expansion and high-wind events that stress the structural integrity of the roof deck. Choosing the right material involves balancing structural shear strength with long-term durability against our unique North Texas weather patterns. FIELD NOTE: Last month, a Dallas homeowner in the Lakewood neighborhood called me after a cheap contractor installed thin 3/8-inch sheathing to save money.
During a routine inspection, I found the roof was sagging between rafters, which would have cost $6,200 to correct if we hadn’t caught it before the architectural shingles were laid. This violation of IRC R803.2.1 not only risks structural failure but can also void your manufacturer warranty. We focus on specifying materials that meet or exceed ASTM D3043 standards to ensure your home remains protected during spring hail seasons. Whether you are considering Advantech for premium moisture protection or standard OSB, understanding the technical requirements is the first step toward a permanent roofing solution.
Understanding OSB vs CDX Plywood Composition
Oriented Strand Board (OSB) is manufactured by compressing layers of wood strands with adhesive resins under intense heat, creating a dense, uniform panel. This material is widely used across the DFW Metroplex because it lacks the natural voids found in plywood and offers excellent shear strength. Most modern OSB panels are treated with moisture-resistant resins that meet ASTM D3043 performance ratings for structural use. CDX plywood is constructed from thin layers of wood veneer glued in cross-laminated patterns, which provides exceptional stiffness and fastener pull-out resistance.
The ‘C-D’ grade refers to the quality of the front and back veneers, while the ‘X’ signifies exposure-rated glue designed to handle temporary moisture during construction. In Texas, plywood is often preferred for its ability to dry out more quickly than OSB if a leak occurs under your synthetic underlayment.
| Material Performance Specs | |
|---|---|
| OSB Standard | APA Rated Sheathing |
| Plywood Standard | ASTM D3043 |
| Fastener Spec | ASTM D1761 |

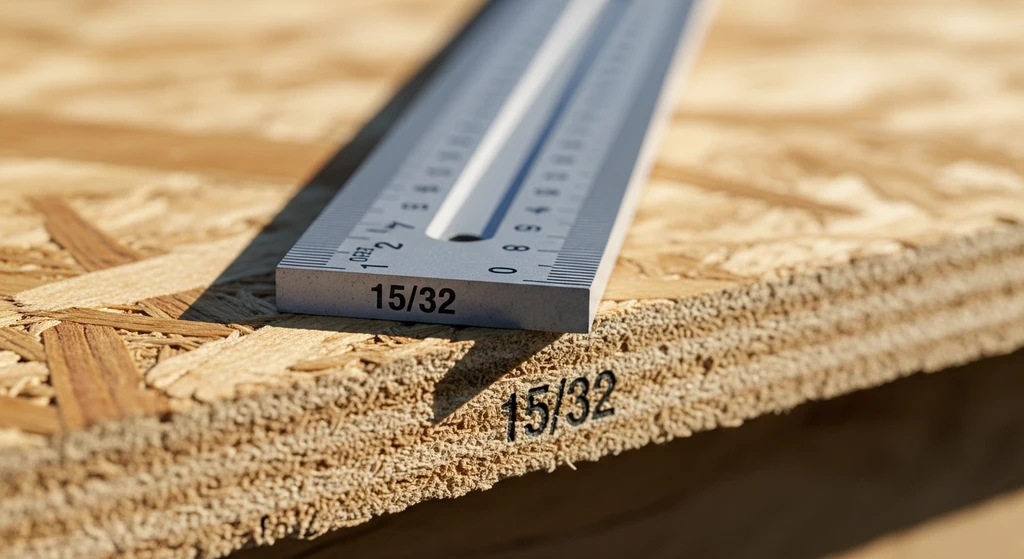

IRC 2021 Code Requirements for Dallas Roofs
The International Residential Code (IRC), specifically section IRC R803.2.1, dictates the minimum thickness and span ratings for roof sheathing. In Dallas, where rafter spacing is typically 24 inches on center, the code requires a minimum 15/32-inch thickness for wood structural panels. Using undersized material is a common red flag that can lead to ‘bouncing’ during installation and premature failure of asphalt shingles. Furthermore, IRC R905 requires that the roof deck be clean, smooth, and securely attached before the application of any felt underlayment or ice and water shield.
Proper attachment involves a specific nailing pattern, usually 6 inches on center along the edges and 12 inches on center in the field. Failure to follow these fastening schedules can result in wind uplift issues during North Texas windstorms, potentially leading to catastrophic roof loss.
Field Note from Experience
During an inspection in Frisco, I discovered a contractor using 7/16-inch OSB on a 24-inch rafter span. This $3,500 mistake required the entire deck to be overlaid with a second layer of wood to meet local building codes and ensure the safety of the structure as of 2026.

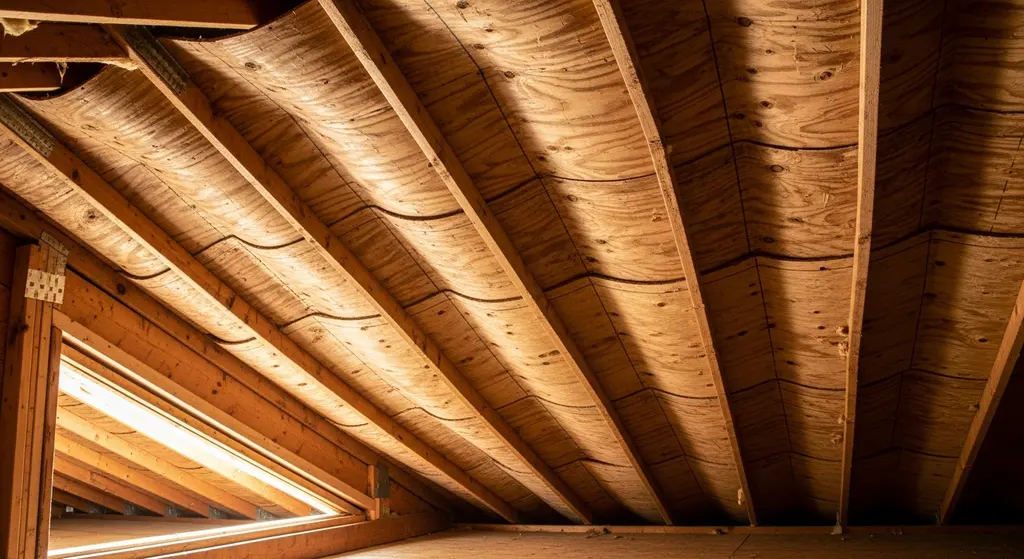

Performance in the North Texas Heat and Humidity
The DFW Metroplex presents a brutal environment for roof sheathing, with attic temperatures often exceeding 140 degrees Fahrenheit during July and August. This extreme heat causes wood panels to expand, and without the NRCA-recommended 1/8-inch gap between sheets, the panels will buckle and create visible ridges in your architectural shingles. We always specify H-clips for OSB installations in Dallas to maintain this necessary expansion gap. Humidity is the second major factor, as the transition from dry winters to humid spring storm seasons can cause ‘edge swell’ in lower-quality OSB.
When the edges of the sheathing swell, they create uneven surfaces that can wear down asphalt shingles from the underside. Utilizing a premium product like Advantech can mitigate these risks, as it carries a high resistance to moisture absorption compared to standard commodity-grade panels.
Advantages
- CDX Plywood handles humidity cycles better
- OSB provides consistent shear strength
- Advantech offers superior 50-year warranties
Disadvantages
- Cheap OSB can delaminate in high heat
- Plywood is 20-30% more expensive in DFW
- Standard felt underlayment can trap moisture on wood
What Contractors Hide About Roof Decking
Many roofing companies in Dallas-Fort Worth will attempt to ‘skin over’ rotted roof sheathing to save time and increase their profit margins. They may argue that a small soft spot isn’t a problem, but even minor rot can lead to fastener failure, causing shingles to blow off during a storm. We always insist on a full deck inspection once the old shingles and felt underlayment are removed to identify hidden damage. Another common tactic is the reuse of damaged flashing or skipping the installation of H-clips.
While H-clips only cost a few cents each, skipping them allows the contractor to work faster, but it leaves your roof vulnerable to the buckling mentioned earlier. Always ask for photos of the bare decking before the new synthetic underlayment is applied to ensure no rotted wood was left behind.
Contractor refuses to replace rotted wood
Consequence: Shingles will not stay fastened and will blow off in high winds.
No H-clips used on OSB spans
Consequence: The roof will develop wavy ridges due to thermal expansion.
What Contractors Hide
Reusing old decking with minor rot
The Reality: Contractors save $100 per sheet in labor and material while compromising your home.
Skipping the 1/8-inch expansion gap
The Reality: Speeds up installation but leads to buckled panels within two years.
External Authoritative Resources
These industry-standard references support the information in this guide:
Building Codes
Frequently Asked Questions
Is OSB or Plywood better for Dallas roofs?
While OSB is more common and cost-effective, CDX plywood is often considered superior in the DFW Metroplex for its ability to handle humidity and provide better fastener grip for heavy architectural shingles.
Does insurance cover rotted roof sheathing?
Generally, insurance companies like State Farm or Allstate cover sheathing damaged by a covered peril (like a falling tree), but they often exclude rot caused by long-term maintenance issues or slow leaks.
What is the standard thickness for roof decking in Texas?
According to IRC R803.2.1, the standard minimum is 15/32-inch, though many high-end Dallas custom homes use 19/32-inch for increased structural rigidity and better wind resistance.
Can you install new shingles over old sheathing?
Yes, provided the existing sheathing is structurally sound, meets current IRC 2021 codes, and shows no signs of delamination, rot, or moisture damage from previous leaks.
What are H-clips and are they required?
H-clips are small metal spacers that fit between sheathing panels. While not always strictly required by code if spans are short, the NRCA strongly recommends them to prevent buckling in Texas heat.
How much does it cost to replace a sheet of plywood in Dallas?
In the current 2026 market, expect to pay between $90 and $130 per sheet for labor and materials during a full roof replacement in the Dallas-Fort Worth area.
Final Thoughts
Selecting the right roof sheathing is a technical decision that impacts the longevity of your entire roofing system. In the Dallas-Fort Worth area, adhering to IRC R803.2.1 and choosing high-quality materials like CDX plywood or premium OSB ensures your home can withstand the extreme temperature swings and high-wind events common to North Texas. Always prioritize code compliance and proper installation techniques over the lowest bid to protect your investment. FIELD NOTE: I recently helped a family in North Dallas whose insurance claim was denied for ‘ordinance or law’ coverage because their contractor didn’t document that the original 3/8-inch decking was non-compliant with current codes.
By documenting the IRC R803.2.1 violation early, we were able to get the $4,800 decking upgrade covered under their policy. Don’t let a contractor’s shortcut become your financial burden; ensure your roof is built to modern standards from the deck up.
