Contractor’s Bottom Line
A flat roof deck requires specialized waterproofing membranes to manage standing water and prevent structural degradation on low-slope surfaces. Unlike pitched roofs, flat assemblies rely on fully adhered systems like TPO or modified bitumen that meet IRC R905 hydrostatic pressure requirements. Ensure the roof design incorporates a slight slope to drainage points to prevent ponding water from breaching the membrane seams.
Key Takeaways
- A minimum 1/4-inch per foot slope is mandatory under IRC 2021 to prevent ponding water and structural deflection.
- Specify TPO or PVC membranes with a UL Class A fire rating and Energy Star certification for maximum heat reflectivity in Texas.
- Walkable surfaces require a pedestal or sleeper system to protect the underlying waterproofing membrane from mechanical damage.
- In Dallas-Fort Worth, thermal expansion can cause 3-tab shingles or inferior membranes to crack, making single-ply systems superior.
Installing a flat roof deck in the North Texas region is a high-stakes engineering task that bridges the gap between functional outdoor living and critical structural protection. We often see homeowners attempt these projects without realizing that the DFW Metroplex climate presents some of the highest thermal stresses in the country. A successful installation must balance the weight of the decking material with the waterproofing integrity of the roof assembly. Field Note #1: Last summer in Highland Park, I inspected a flat roof deck where the contractor skipped the proper pitch.
The resulting ponding water led to a $14,000 structural repair after the CDX plywood rotted through within just three years. This highlights why following the National Roofing Contractors Association (NRCA) guidelines for drainage is non-negotiable for any Dallas project. Whether you are planning a commercial rooftop lounge or a residential balcony, understanding the interplay between ASTM International standards and local building codes is essential. We will break down the specific requirements for membranes, fasteners, and structural sheathing to ensure your investment stands up to the next decade of Texas weather.

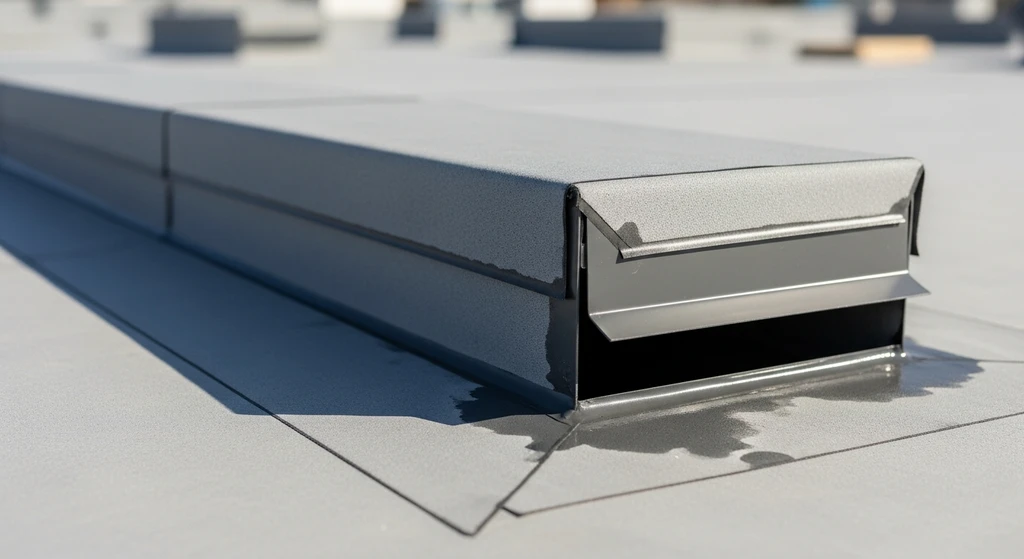

Navigating the Challenges of Walkable Flat Roof Systems
The primary challenge of any flat roof deck is managing the ‘dead load’ and ‘live load’ requirements while maintaining a watertight seal. Unlike standard roofs, a deck must support the weight of furniture, people, and the decking material itself without compressing the insulation or puncturing the membrane. We utilize Occupational Safety and Health Administration (OSHA) safety standards during installation to ensure all perimeter railings and structural supports meet the 200-pound lateral load requirement. Drainage is the second major hurdle, as even a minor depression can lead to water stagnation.
The International Code Council (ICC) specifies that all roof surfaces must be designed to drain water effectively. In the Dallas-Fort Worth area, heavy spring downpours can overwhelm poorly designed scuppers, leading to interior flooding if the overflow drains are not properly sized according to IRC 2021 standards.
Membrane Puncture
Typical Cost: $2,500 – $5,000
Prevention: Use a protection mat and pedestal system
Insurance Coverage: Often excluded if caused by maintenance/wear
Code Reference: IRC R905.1

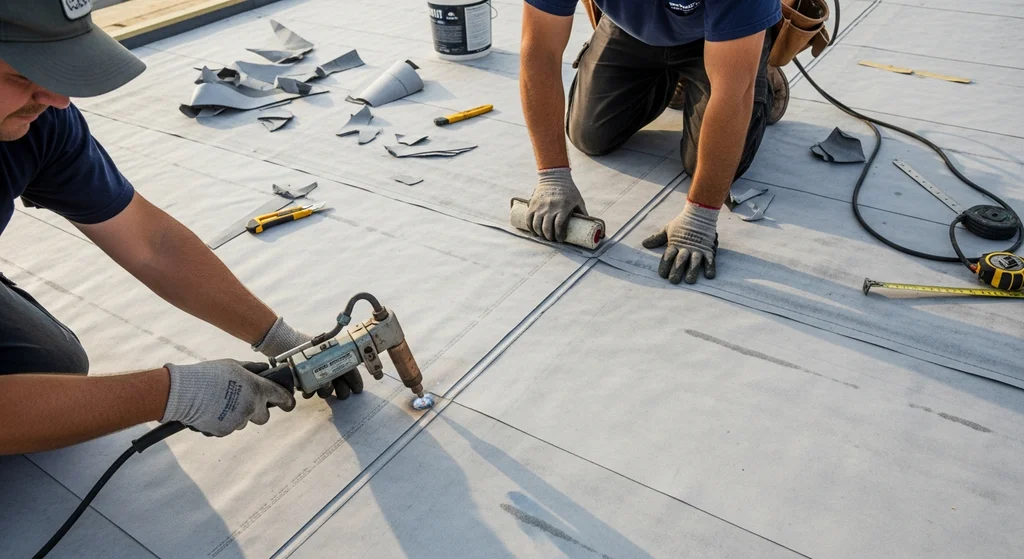

IRC 2021 and Dallas Building Code Compliance
In the DFW Metroplex, building departments strictly enforce IRC R905.13 for thermoplastic single-ply roofing. This code requires that all membranes be installed according to manufacturer specifications and ASTM D6754 standards. For flat roof decks, the structural sheathing must be a minimum of 15/32-inch CDX plywood or oriented strand board (OSB) with H-clips to prevent edge deflection under heavy traffic. Fastener patterns are also highly regulated to resist wind uplift during North Texas windstorms.
We follow ASTM D1761 for mechanical fasteners, ensuring that screws and plates are driven into the structural joists rather than just the sheathing. This prevents the ‘billowing’ effect seen in many poorly installed flat roofs when high winds create a vacuum over the deck surface.
| Code Compliance Checklist | |
|---|---|
| Minimum Slope | 1/4:12 (2%) |
| Sheathing | 15/32″ CDX Plywood |
| Fire Rating | UL Class A |
Field Note from Experience
During a permit inspection in Plano, a project was red-tagged because the rail posts weren’t flashed to IRC R905.1 standards. Fixing the flashing after the deck was already installed cost the owner an extra $4,500 in labor and materials.

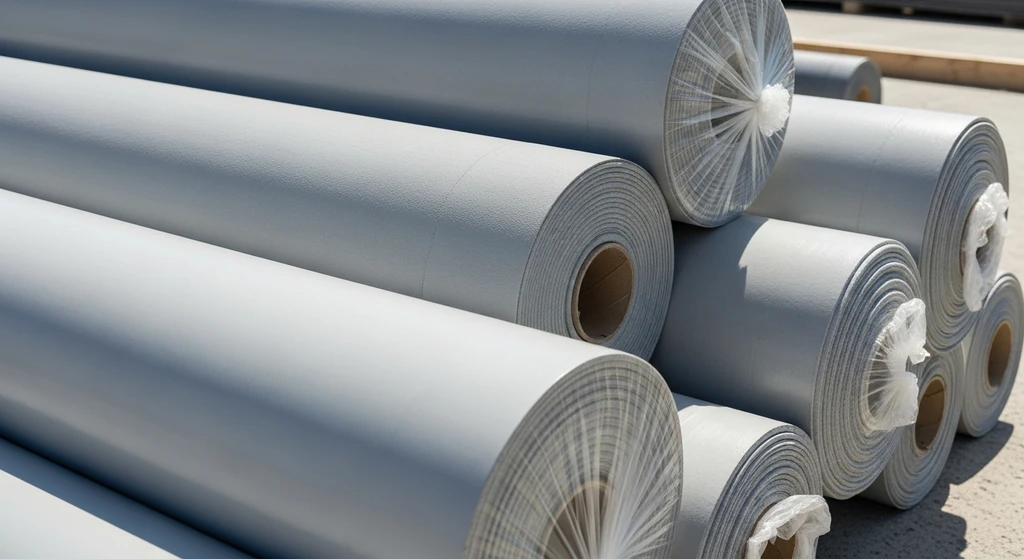

Specifying Materials for Longevity and Performance
Choosing the right membrane is the difference between a 10-year and a 30-year roof. For flat roof decks, we specify TPO (Thermoplastic Polyolefin) or PVC (Polyvinyl Chloride) because of their superior chemical resistance and heat-welded seams. Unlike asphalt shingles, these materials do not become brittle in the 100-degree Dallas sun. We always recommend a minimum 60-mil thickness to provide extra puncture resistance under pedestal systems.
The decking surface itself often consists of porcelain pavers or composite wood tiles. Using a pedestal system like those from Bison or Elevate allows water to flow freely beneath the deck surface to the drains. This prevents the moisture from being trapped against the membrane, which can lead to biological growth and premature material failure.
Advantages
- TPO reflects up to 80% of UV rays
- Heat-welded seams are 3x stronger than taped seams
- PVC is highly resistant to grease and chemicals
Disadvantages
- Higher initial cost than EPDM
- Requires specialized heat-welding equipment
- Can be slippery when wet if not textured

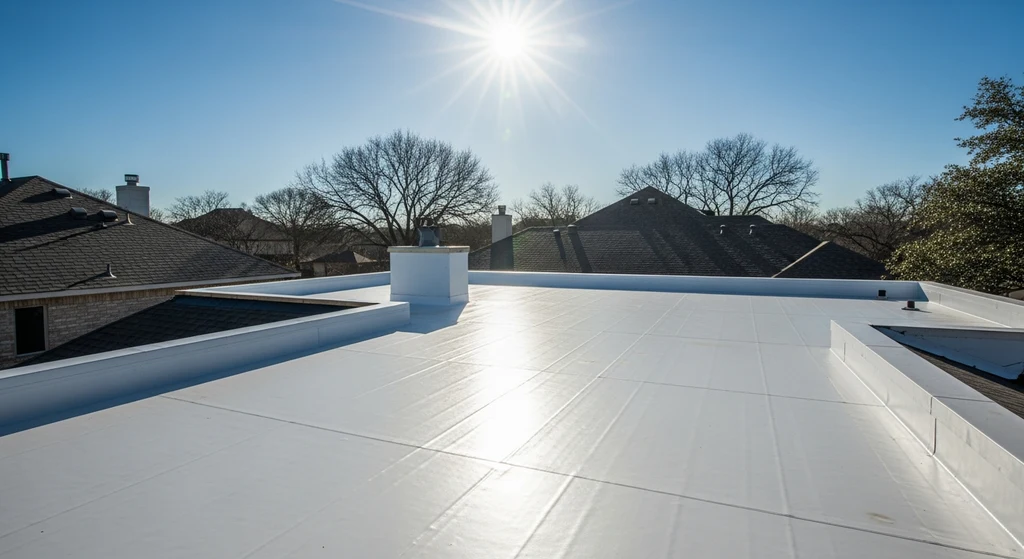

Performance in the Dallas-Fort Worth Climate
The DFW Metroplex is located in Climate Zone 3, which experiences extreme temperature swings that can exceed 50 degrees in a single 24-hour period. This causes significant thermal expansion and contraction in roofing materials. We specify synthetic underlayment meeting ASTM D226 standards to provide a secondary moisture barrier that won’t tear under these stresses. Additionally, the high UV index in North Texas can degrade standard felt underlayment in weeks if left exposed.
Hail resistance is another critical factor. While no roof is ‘hail-proof,’ PVC membranes often carry a UL 2218 Class 4 impact rating, which can lead to significant insurance premium discounts for Dallas homeowners. We recommend systems that have been tested by FEMA for wind uplift resistance to ensure they stay grounded during our notorious spring supercell storms.
Field Note from Experience
I’ve seen standard EPDM fail in the North Texas heat because it lacks the UV reflectivity of TPO. One North Dallas homeowner faced a $22,000 replacement just six years after installation due to severe shrinkage and seam failure.

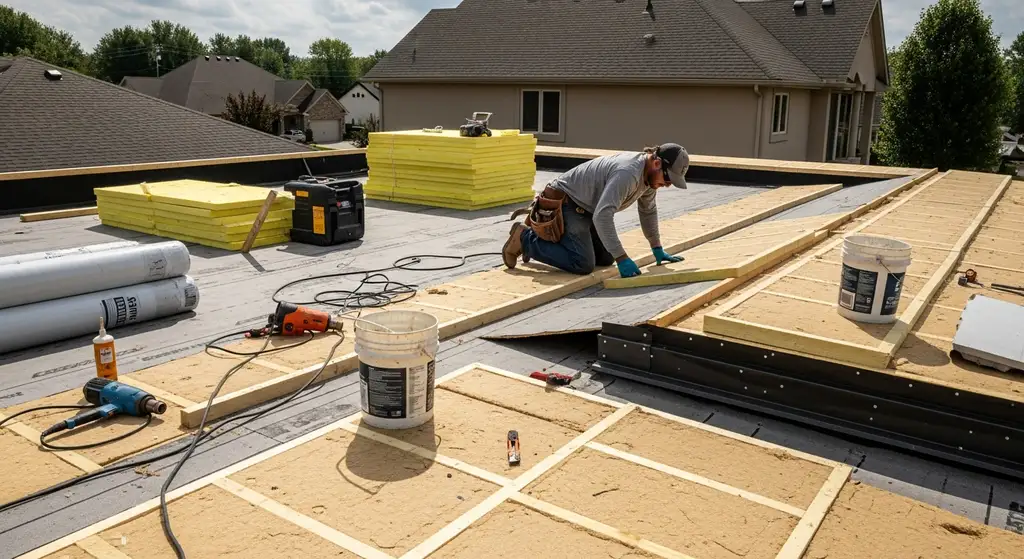

Investment and Pricing for Flat Roof Decks
The cost of a flat roof deck is significantly higher than a standard sloped roof due to the structural reinforcement and specialized waterproofing required. In the current 2026 market, labor costs in Dallas are driven by a shortage of certified TPO installers. You should expect to pay a premium for contractors who are authorized by manufacturers like GAF or CertainTeed to provide NDL (No Dollar Limit) warranties. Material prices for TPO have stabilized, but the pedestal systems and high-end pavers can add $15 to $20 per square foot to the base roofing cost.
We also factor in the cost of Dallas building permits, which vary by municipality but generally add 1-2% to the total project budget. Financing options are often available, but we suggest prioritizing the waterproofing budget over the aesthetic finishes if funds are limited.
Dallas Market Pricing
In Dallas-Fort Worth, expect to pay $18-$35 per square foot for a professional flat roof deck assembly. These are current 2026 Dallas market prices; costs vary by region and can be 15-25% higher in remote Texas areas. Peak pricing occurs spring (March-May) storm season.
| Component | Estimated Cost (Sq. Ft.) |
|---|---|
| 60-mil TPO Membrane | $8.00 – $12.00 |
| Pedestal System | $6.00 – $10.00 |
| Porcelain Pavers | $10.00 – $15.00 |
| Labor & Permits | $5.00 – $8.00 |

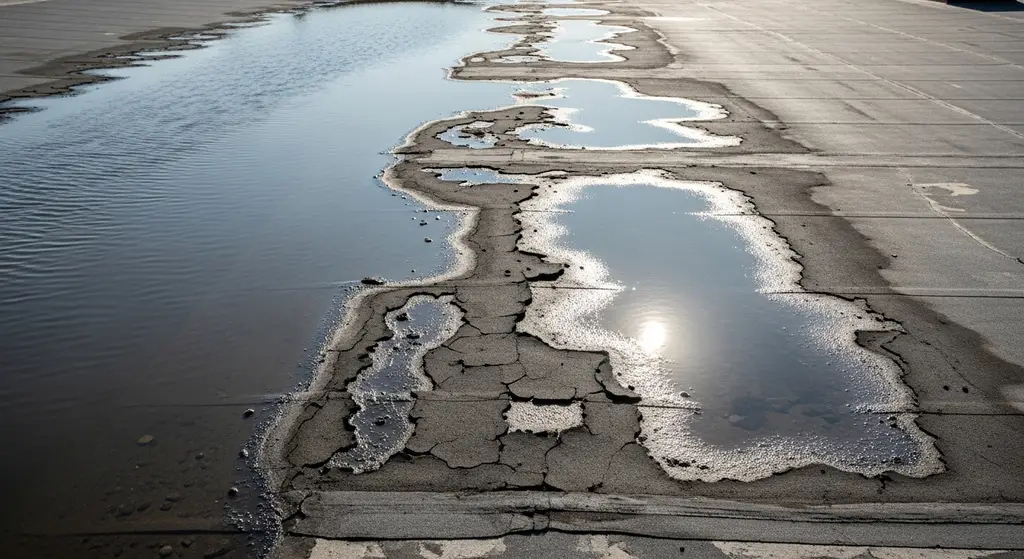

What Contractors Often Hide from Homeowners
Many contractors cut corners by reusing old flashing or skipping the installation of a cricket to divert water around chimneys and curbs. This is a critical failure point on flat roofs. They may also use 45-mil membrane instead of the specified 60-mil to save on material costs, which significantly reduces the puncture resistance of the deck. Always ask for the ‘spec sheet’ and verify the material thickness upon delivery.
Another common tactic is skipping the ice and water shield at the perimeter, claiming it isn’t necessary for flat roofs. However, in the DFW Metroplex, our winter ‘ice dam’ events can push water under the edges of the membrane if it isn’t properly sealed with a self-adhering modified bitumen underlayment meeting ASTM D1970 standards.
Contractor doesn’t own a heat-welder
Consequence: They will likely use glue or tape, which fails quickly in Texas heat.
What Contractors Hide
Reusing old roof-to-wall flashing
The Reality: Old flashing has nail holes and metal fatigue, leading to leaks within 24 months.
Skipping tapered insulation
The Reality: Without a tapered system, water will sit on the membrane, voiding most manufacturer warranties.
External Authoritative Resources
These industry-standard references support the information in this guide:
Building Codes
Frequently Asked Questions
What is the best material for a flat roof deck in Dallas?
TPO or PVC membranes are superior because they offer high UV reflectivity and heat-welded seams that resist the extreme North Texas heat. These materials meet ASTM D6754 standards for durability and puncture resistance.
Do I need a permit for a flat roof deck in Dallas County?
Yes, any structural change or new roof covering requires a permit and inspection to ensure compliance with IRC 2021 and local amendments regarding fire ratings and drainage.
How long does a flat roof deck last?
A professionally installed TPO or PVC system with a pedestal deck can last 20-30 years if maintained properly. Regular inspections by an NRCA-certified professional are recommended every two years.
Can I put a deck directly on my flat roof?
No, you must use a pedestal or sleeper system to protect the membrane. Placing materials directly on the roof violates IRC R905.1 and will cause immediate leaks and structural rot.
What is the minimum slope for a flat roof deck?
The IRC 2021 requires a minimum slope of 1/4-inch per foot (2%) to ensure positive drainage. Anything less is considered ponding and will void your warranty.
Is hail a concern for flat roof decks?
Yes, but Class 4 impact-rated PVC membranes are designed to withstand significant hail. Many Dallas insurance companies offer discounts for installing these ASTM-rated systems.
Final Thoughts
Building a flat roof deck in the Dallas-Fort Worth area is a complex project that requires a deep understanding of structural loads and waterproofing technology. By adhering to IRC 2021 codes and selecting high-performance materials like 60-mil TPO, you can create a beautiful, functional space that adds significant value to your home. Remember that the cheapest bid often hides the most dangerous shortcuts, particularly regarding drainage and flashing. Final Field Note: A client in North Dallas nearly fell for a ‘free roof’ scam that would have cost them $30,000 in insurance fraud penalties.
Always verify your contractor’s TDLR license and ensure they follow the Texas Prompt Pay Law. Your roof is your home’s first line of defense; don’t compromise on the expertise required to build it right for the 2026 season and beyond.
